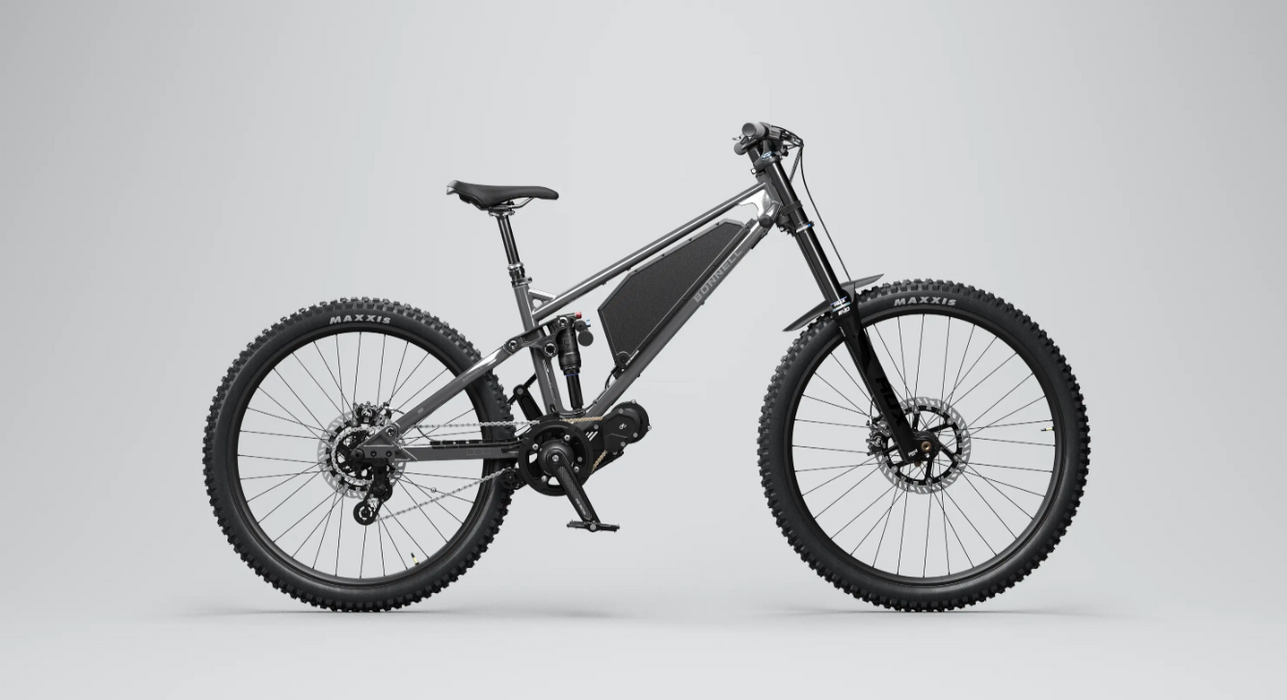

Bonnell 775 MX

Bonnell 775 MX

by Bonnell
$6,245.00
SKU
Color: Texas Grey

PRE-ORDER NOW — ORDERS SHIP OUT THIS JULY 2025


Meet Your Ultimate Trail Companion

The Bonnell 775 MX fuses the agility of a downhill mountain bike with the brute force of a lightweight electric dirt bike—delivering the perfect balance of performance, versatility, and freedom. Whether you're a weekend warrior or a hardcore rider, this machine is built for full-throttle trail domination while staying light enough to toss in your van.

Key Specs at a Glance

  • Intended Use: Off-Road

  • Front Suspension Travel: 200mm

  • Rear Suspension Travel: 170mm

  • Weight: 75 lbs (34 kg)

  • Range: 12–37 miles (20–60 km)

Motor: Maximum Power, Maximum Fun

At the heart of the 775 MX is the CYC X1 Pro Gen 4 mid-drive motor, cranking out an astonishing 280 Nm of torque and up to 6,000 watts of peak power at the crank. The integrated torque sensor adapts in real-time to your pedal input for a responsive and intuitive ride—whether you're climbing technical singletrack or ripping open desert trails.

Power Modes: Use pedal assist or throttle-only modes, customized through the Ride Control App.
Warning: Always ride within your skill level and check your local laws before using high-power e-bikes off-road.

Display: Smart Control at Your Fingertips

Bonnell Intuition Display

Your command center on the trail. The Intuition Display delivers real-time feedback on speed, battery, power mode, and more—helping you stay focused and informed. With seamless Apple AirTag integration, you can track your bike with your iPhone anywhere, anytime.

Battery: Built for Big Adventures

65V 1300Wh MX Battery Pack

Go further, ride longer. Featuring Samsung 50s high-performance cells, this lightweight aluminum-encased battery offers:

  • Fast Charging: Full charge in under 4 hours

  • Advanced BMS: Dual-layer battery management for safety

  • Swappable Design: Easily swap batteries and stay on the move

  • Warranty: Backed by a 1-year manufacturer warranty

App-Controlled Customization: Bonnell Ride Control App

With Bluetooth® connectivity, the Bonnell Ride Control App puts full control in your hands:

  • Fine-tune power modes, throttle behavior, and torque sensor response

  • Adjust pedal assist levels to suit your terrain or fitness goals

  • Monitor live data like speed, battery health, temperature & more

Compatible with iPhone & Android.

Suspension: Built to Dominate

Suntour Rux 38 RC+ Fork

  • 200mm travel with 38mm stanchions

  • Adjustable rebound and compression

  • Boost 20x110mm thru-axle

  • Integrated short fender

Suntour TriAir 3CR Rear Shock

  • Trunnion mount with rebound and 3-position compression

  • Custom-tuned for the 775 MX

  • Dual-mode lower shock position:

    • Comfort Mode: Better traction and small bump compliance

    • Sport Mode: Increased progressivity for jumps and aggressive riding

Frame: Engineered for Aggression

Crafted for strength and adaptability:

  • 4130 chromoly front triangle with anti-rust ED coating

  • 6061 aluminum rear triangle with adjustable dropouts

  • Sealed bearings and forged rocker for durability

  • Progressive linkage-driven rear suspension with 170mm travel

  • Compatible with dual crown forks (up to 615mm axle-to-crown)

Brakes: Stop on a Dime

Magura MT5 Hydraulic Brakes

  • 4-piston calipers

  • MDR-P floating rotors (220mm front, 203mm rear)

  • Moto-style setup with lightweight 2-finger levers

  • Excellent heat dissipation and fade resistance

Throttle & Grips: Precision You Can Feel

Lekkie Pacemaker Twist Throttle + Lock-On Grips

  • Soft compound for comfort and control

  • Plastic end caps for impact protection

  • Slim profile for confident grip

  • Easy to replace and ultra-durable

Customizable Gearing: Tailor Your Ride

Stock Sprocket: 24T – ~31 mph top speed

Optional Sprockets:

  • 22T – ~34 mph, best for fast, rolling terrain

  • 26T – ~29 mph, optimized for low-end torque

  • 28T – ~27 mph, maximum climbing power

Larger sprocket = More torque, less speed
Smaller sprocket = Higher speed, less torque

Wheels & Tires: Ready for Battle

  • Front Wheel: 29" Maxxis Assegai DH 2.5"

  • Rear Wheel: 27.5" Maxxis Assegai DH 2.5"

  • Tubeless-ready Alex EMC 30 rims

  • Boost spacing: 20x110mm (front), 12x148mm (rear)

  • Custom BONNELL sprag clutch rear hub for instant power transfer


  • Crankset: CYC 165mm forged

  • Chain: KMC E1 EPT anti-rust

  • Seatpost: Tranz-X adjustable dropper (140–200mm travel)

  • Handlebars: 780mm width, 50mm rise, stealth finish

  • Pedals: Wide aluminum platform, sealed bearings

  • Extras: Tubeless valves, shock pump, multi-tool included

Size Chart

Legal Notice & Safety Disclaimer

⚠️ WARNING – INGESTION HAZARD: This product contains a button cell battery. Serious injury or death may occur if ingested. Keep batteries away from children. Seek immediate medical attention if swallowed.





🛡️ 3-Year Extended Battery Warranty
Protect your investment with peace of mind.
✅ Adds 3 years of extended protection on your battery



🚚 Delivery or Professional Assembly Fee — $349 (Automatically added at checkout)

Choose how you want to receive your ride:

  • Delivery Option: Your unit will be shipped directly to your location, boxed and ready to go.

  • Pickup Option: Covers the cost of professional assembly when you choose to pick up your ride from our location.
